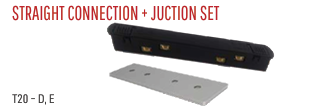

Long track runs powered from a single end can develop voltage drop across their length — the fixtures furthest from the power supply receiving noticeably less than those closest to it — and the standard fix is injecting power at more than one point along the run rather than relying entirely on one end feed. The T20-D combines a straight in-line track connector with a power injection point in a single component, addressing exactly this.

A short 2-3 metre run rarely needs this; a longer continuous installation, or one where a single power supply's cable run to the far end of the track would be impractically long, is where the T20-D earns its place — connecting two track sections in a straight line while simultaneously providing a second power feed point mid-run, rather than requiring two entirely separate components (a standard jointer plus a separate input module) to achieve the same result.

This differs from the standard Metal Jointer (T20N), which handles the same straight in-line connection without any power feed capability — specify the T20-D specifically when that mid-run power injection is needed, and the simpler T20N when it isn't.

Dispatched from Bengaluru within 24 hours. All India delivery. WhatsApp +91 94484 64040 for guidance on power injection points for longer runs.

When does a track run actually need a mid-run power injection point like this?

On longer continuous runs where a single end-fed power supply would cause noticeable voltage drop at the far end, or where routing one power cable the full distance to a single feed point is impractical. Shorter runs under a few metres rarely need this and can rely on a standard end feed instead.

Whether a given run actually needs a mid-point power injection versus a single end feed is a calculation worth confirming rather than assuming — total fixture wattage, cable run length, and the power supply's output capacity together determine whether voltage drop at the far end will be significant enough to matter, and that calculation is specific to each installation's exact layout.

How do I know if my specific track run needs a mid-run power injection point?

This depends on total fixture wattage, cable run length, and power supply capacity together — not a fixed length threshold. Contact T21 via WhatsApp +91 94484 64040 with your layout specifics for a determination on whether a single end feed is sufficient or a T20-D mid-run injection point is recommended.

NEUE is part of the magnetic track lighting category — see Track lighting for background on how these systems work.
