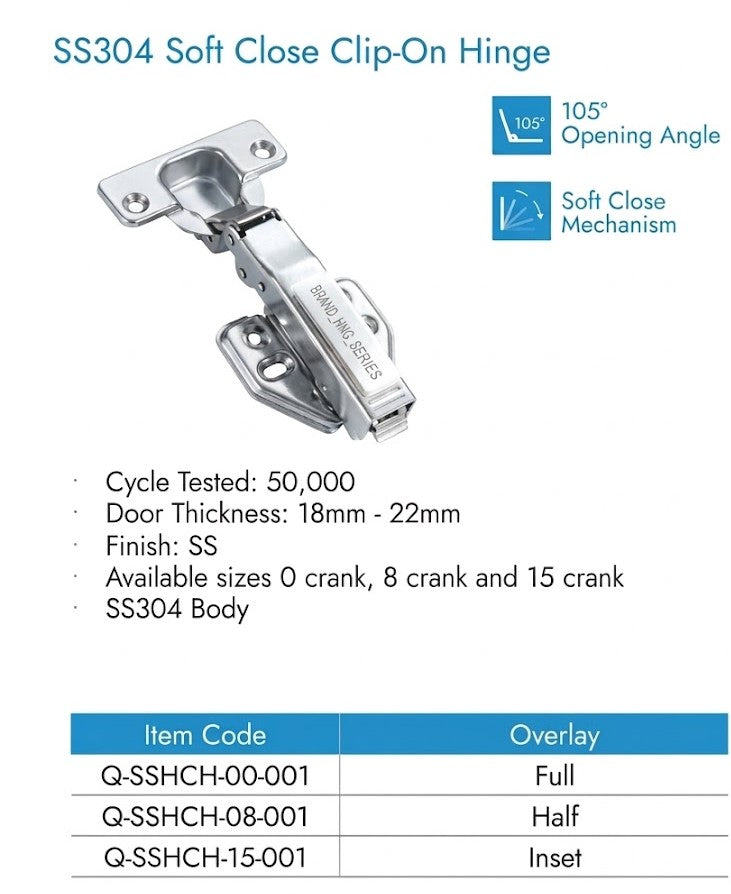

Performance & Core Features

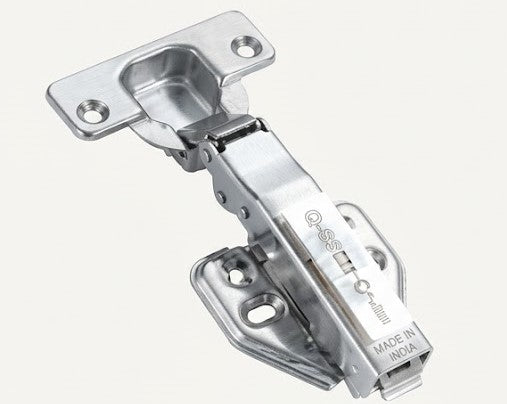

• Mechanism: Features an integrated Soft Close Mechanism to ensure quiet and controlled door closing.

• Opening Angle: Provides a standard 105° opening angle.

• Durability: The hinge is cycle tested to 50,000 operations.

Physical & Material Properties

• Material: Constructed with an SS304 Body.

• Finish: Finished in SS (Stainless Steel).

• Crank Options: Available in 0 crank, 8 crank, and 15 crank sizes.

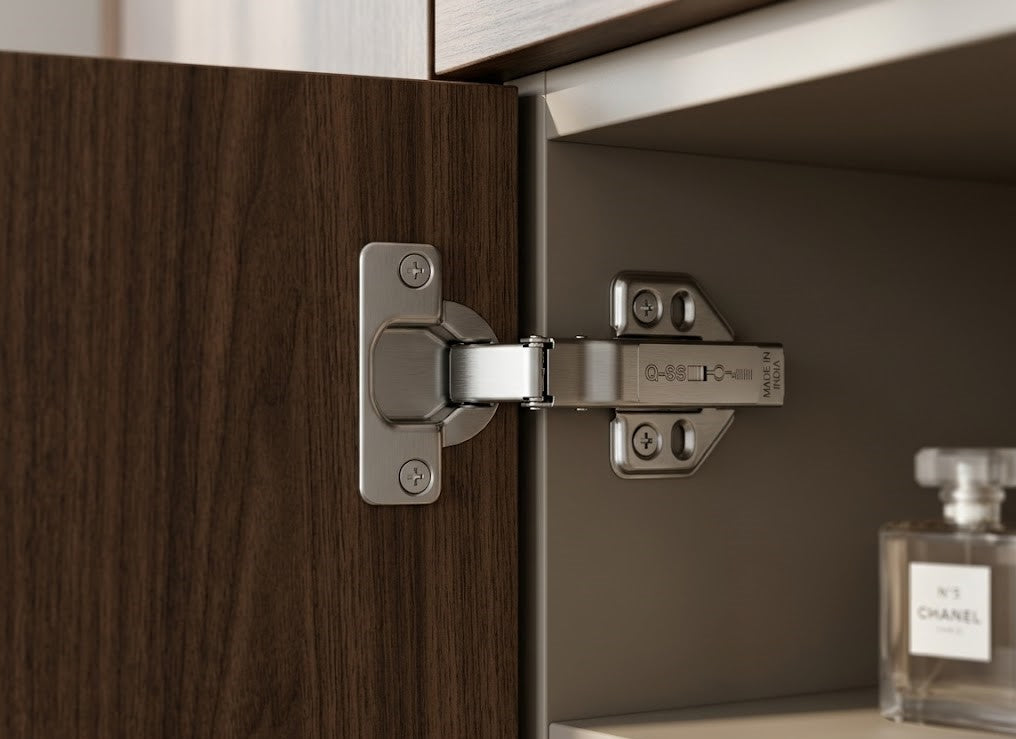

Installation & Compatibility

• Door Thickness: Compatible with cabinet doors ranging from 18mm to 22mm in thickness.

• Overlay Configurations:

  • Full Overlay: Item Code Q-SSHCH-00-001.

  • Half Overlay: Item Code Q-SSHCH-08-001.

  • Inset: Item Code Q-SSHCH-15-001.
