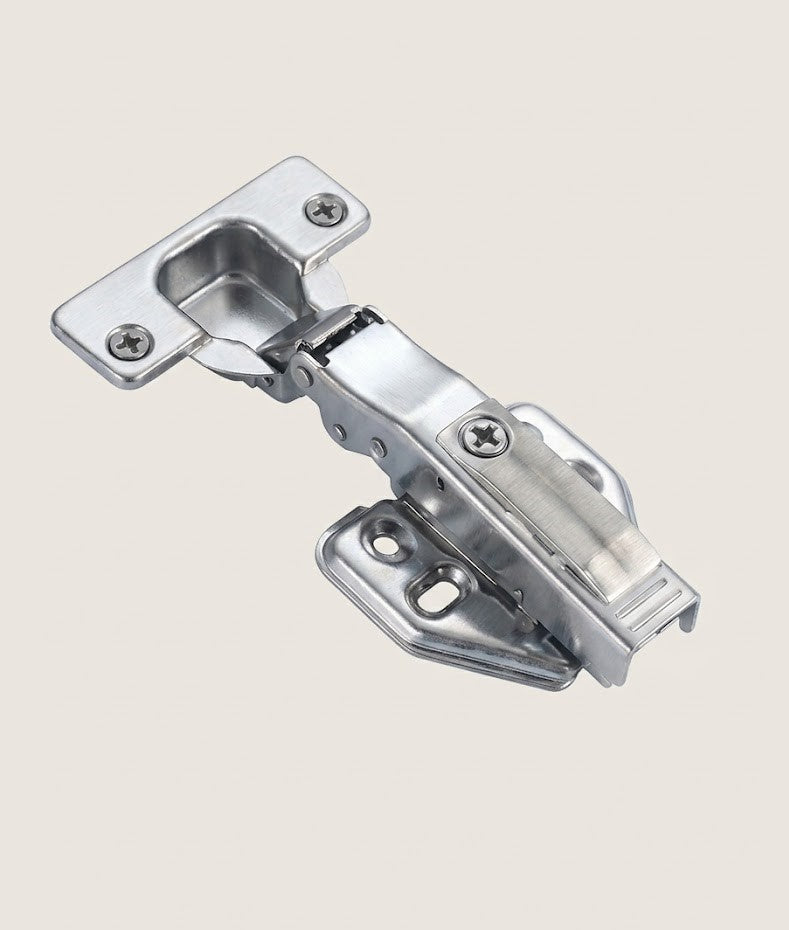

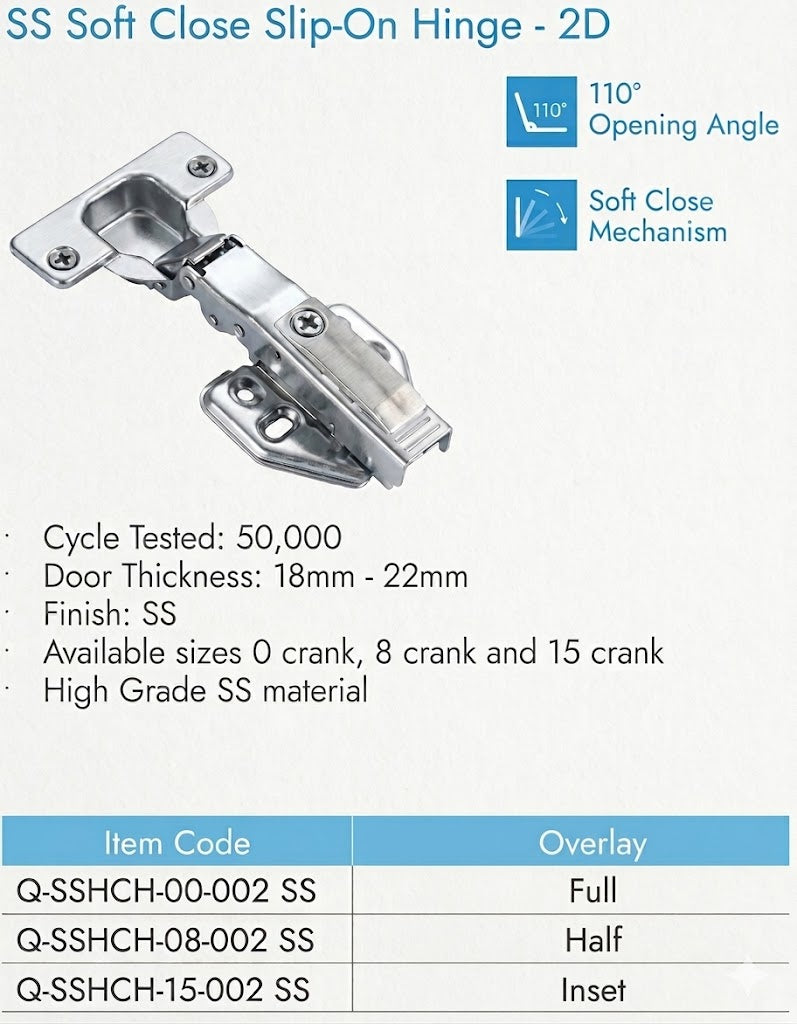

Performance & Core Features

• Mechanism: Includes an integrated Soft Close Mechanism.

• Opening Angle: Features a 110° opening angle.

• Durability: The hardware is cycle tested to 50,000 operations.

Physical & Material Properties

• Material: Constructed with High Grade SS material.

• Finish: Features an SS (Stainless Steel) finish.

• Crank Options: Available in 0 crank, 8 crank, and 15 crank sizes.

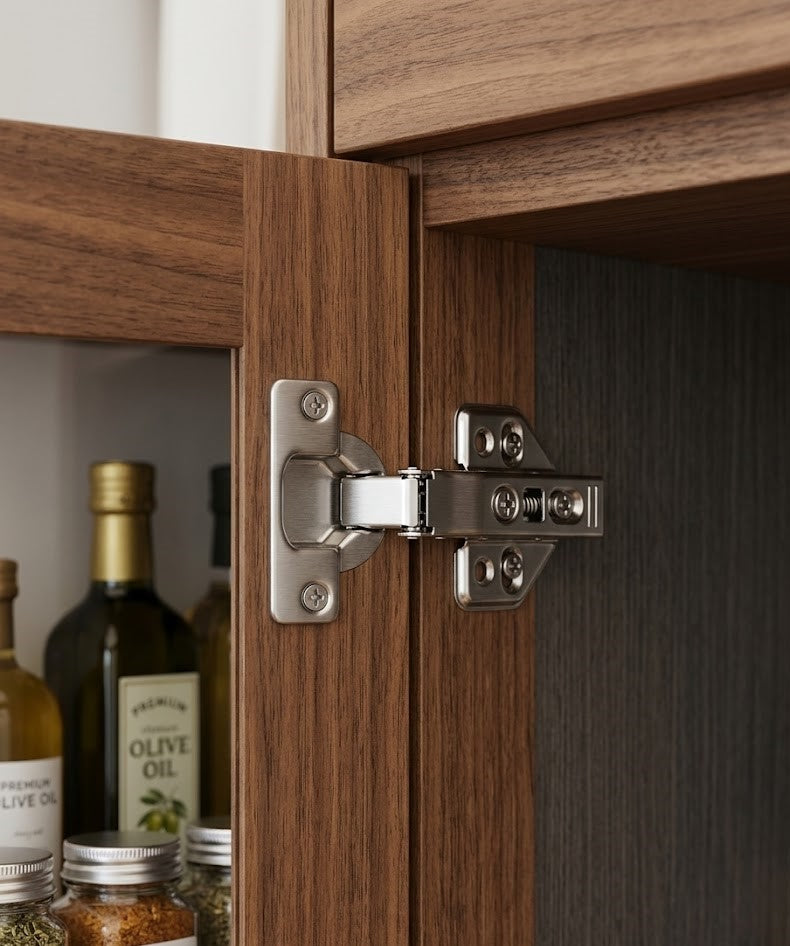

Installation & Compatibility

• Door Thickness: Designed for cabinet doors with a thickness of 18mm - 22mm.

• Overlay Configurations:

  • Full Overlay: Item Code Q-SSHCH-00-002 SS.

  • Half Overlay: Item Code Q-SSHCH-08-002 SS.

  • Inset: Item Code Q-SSHCH-15-002 SS.
