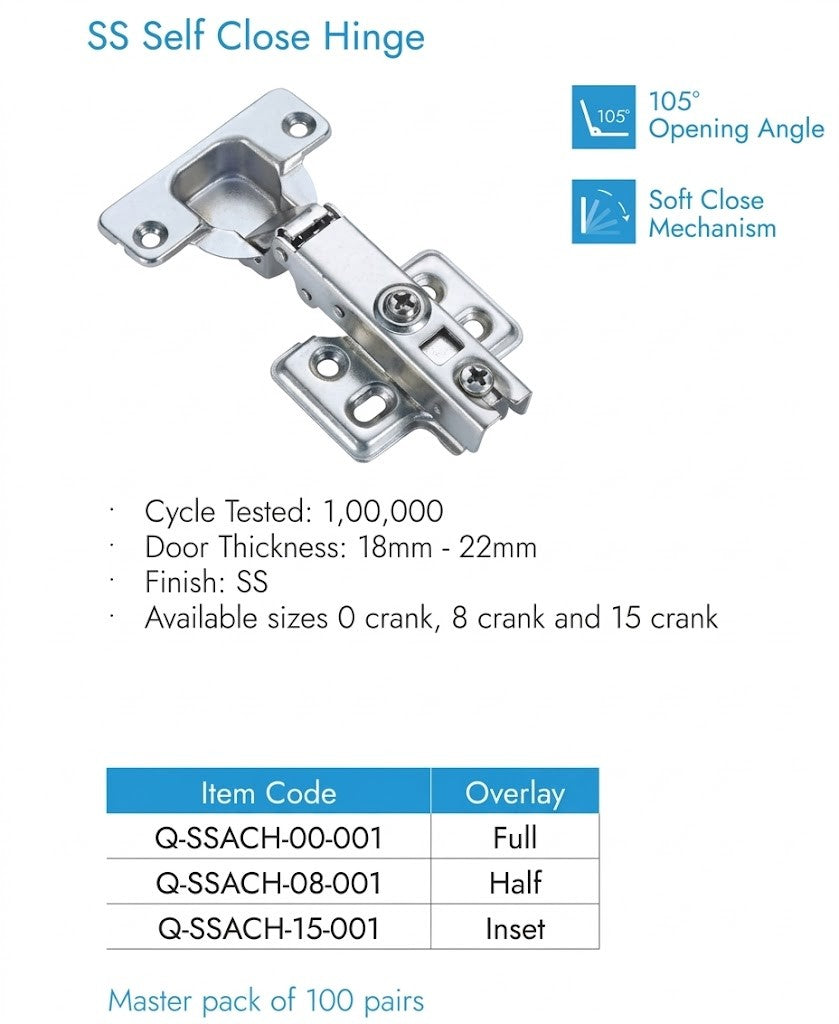

1. Performance & Mechanism

• Opening Angle: Features a standard 105° opening angle.

• Mechanism: Includes an integrated Soft Close Mechanism for controlled closing.

• Durability: The unit is cycle tested to 1,00,000 operations.

2. Material & Finish

• Material: Constructed with SS (Stainless Steel).

• Finish: Finished in SS.

• Crank Options: Available in 0 crank, 8 crank, and 15 crank sizes.

3. Installation & Compatibility

• Door Thickness: Suitable for cabinet doors with a thickness of 18mm - 22mm.

• Overlay Configurations:

  • Full Overlay: Item Code Q-SSACH-00-001.

  • Half Overlay: Item Code Q-SSACH-08-001.

  • Inset: Item Code Q-SSACH-15-001.

4. Packaging

• Bulk Availability: Available in a Master pack of 100 pairs.
