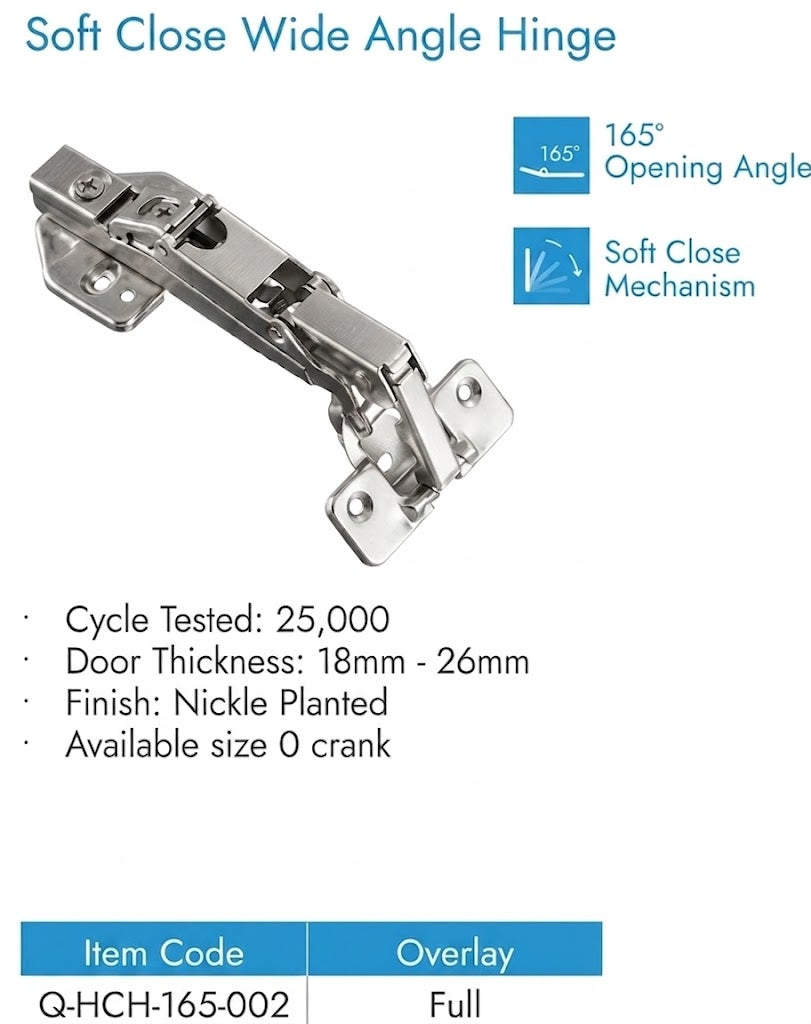

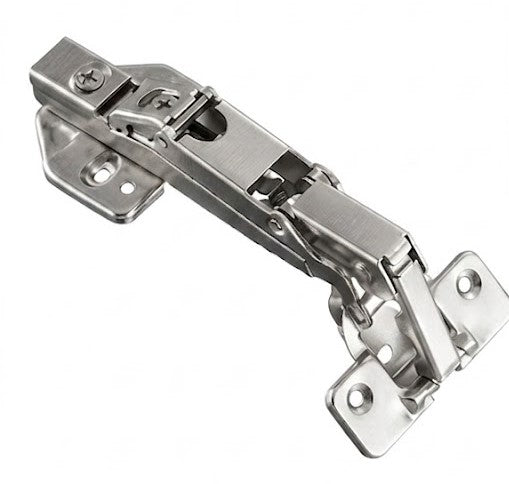

1. Performance & Mechanism

• Opening Angle: This hinge provides a 165° opening angle.

• Mechanism: It features an integrated Soft Close Mechanism for controlled door closing.

• Durability: The hardware has been cycle tested to 25,000 operations.

2. Physical Properties

• Finish: The hinge has a Nickle Planted (Nickel Plated) finish.

• Crank Size: It is available in a size 0 crank configuration.

• Overlay: This specific model is designed for a Full overlay application.

3. Installation Compatibility

• Door Thickness: Designed for cabinet doors with a thickness ranging from 18mm to 26mm.

• Item Code: The product identifier for this hinge is Q-HCH-165-002.
