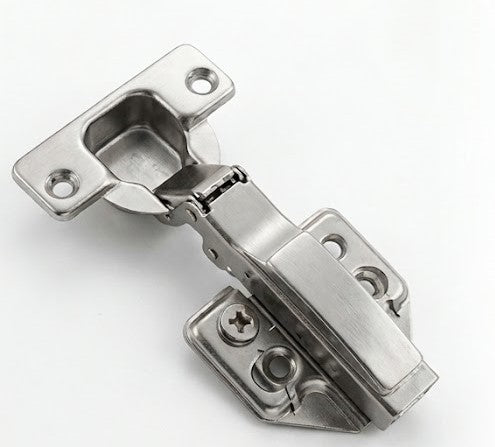

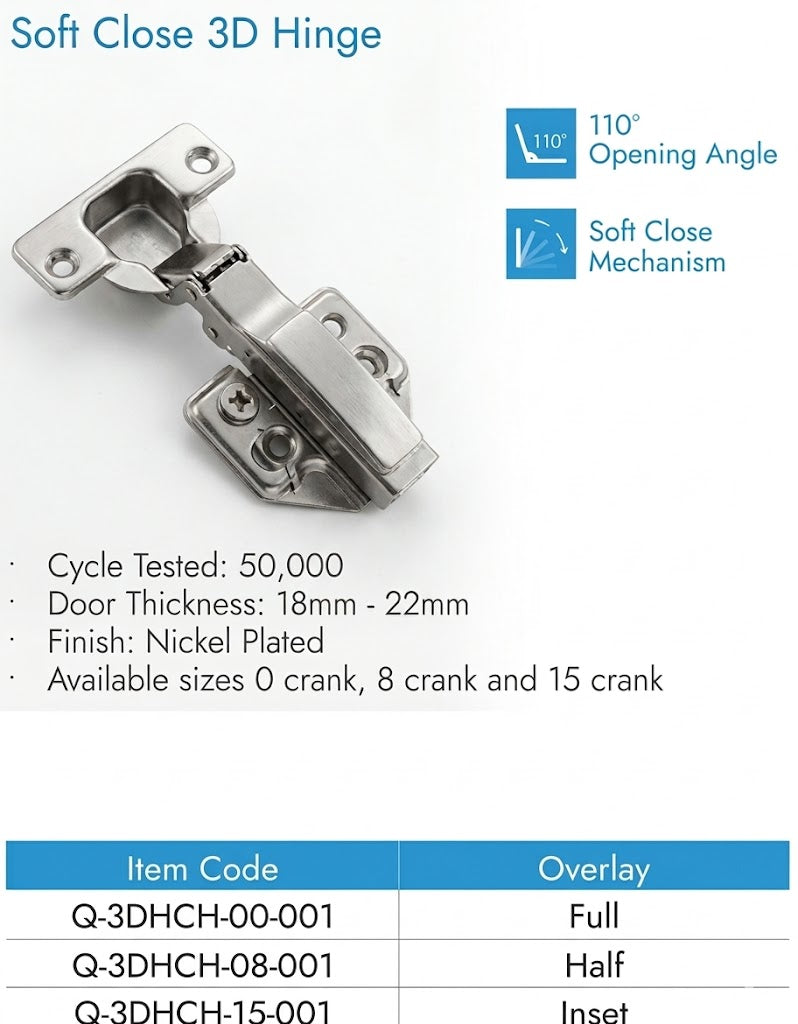

Performance & Core Features

• Mechanism: Includes an integrated Soft Close Mechanism for silent and controlled closing.

• Opening Angle: Features a standard 110° opening angle.

• Durability: The hinge is cycle tested to 50,000 operations.

Physical & Material Properties

• Finish: The hardware has a Nickel Plated finish.

• Crank Options: It is available in 0 crank, 8 crank, and 15 crank sizes.

• Adjustment: Features a 3D adjustment design for precise door alignment.

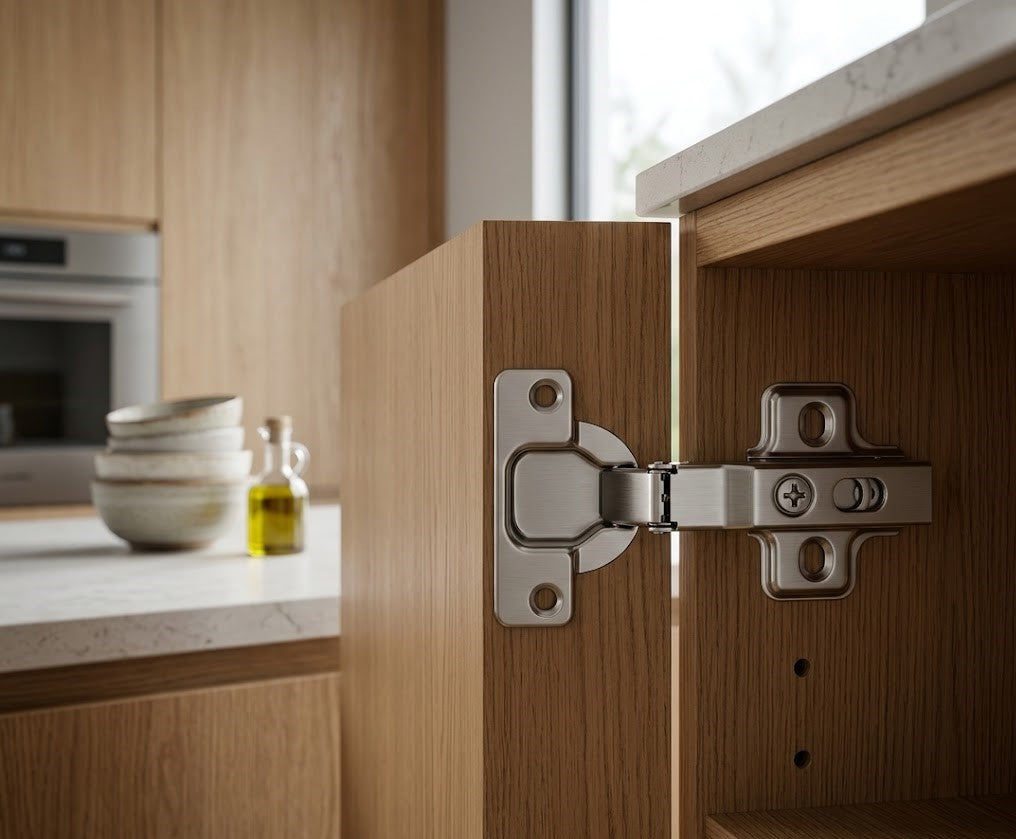

Installation & Compatibility

• Door Thickness: Designed for cabinet doors with a thickness ranging from 18mm to 22mm.

• Overlay Configurations:

  • Full Overlay: Item Code Q-3DHCH-00-001.

  • Half Overlay: Item Code Q-3DHCH-08-001.

  • Inset: Item Code Q-3DHCH-15-001.
