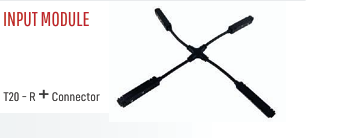

A grid-pattern installation using the X-Shape jointer to branch in four directions from one point often needs power fed from that same central junction — and the T20-R+ combines the four-way structural connection with a power feed input in one component, rather than requiring the X-junction and a separate nearby input module.

This is the input-module equivalent of what the T20-D does for straight runs: consolidating a connection function with power injection to reduce the total component count and the number of separate electrical connections in a complex layout. For a genuine grid installation — several perpendicular track runs crossing at shared points, as opposed to a single perimeter path — feeding power directly at a central X-junction is often the most practical wiring approach, since it can supply all four branches from one location rather than running separate feeds to each arm.

As with the standard X-Shape Surface Jointer, this is specialised hardware for grid-pattern layouts specifically — most NEUE installations, built from straight runs and corner turns, never need it.

Dispatched from Bengaluru within 24 hours. All India delivery. WhatsApp +91 94484 64040.

How is this different from the standard X-Shape Surface Jointer?

The standard X-Shape Surface Jointer provides the four-way structural and electrical connection between track sections without a dedicated power input. The T20-R+ combines that same four-way junction with a power feed point, useful specifically when the grid's power supply connects directly at the central junction rather than at a separate point on one of the branches.

Specifying this correctly means confirming both the physical four-way junction requirement and the power feed location together as one decision, since ordering the standard X-Shape jointer without power capability when the layout actually needs mid-junction feed — or the reverse — means a component swap after the fact rather than a straightforward first-time specification.

How do I decide between the standard X-Shape Surface Jointer and this powered T20-R+ version at the planning stage?

Determine where the power supply will physically connect to the grid layout before ordering. If the power feed connects directly at the central four-way junction, specify the T20-R+. If the feed connects elsewhere on the layout and the junction only needs structural and electrical pass-through, the standard X-Shape Surface Jointer is sufficient. This component is ordered specifically for grid-pattern layouts and rarely appears on standard perimeter or straight-run installations, which use the simpler dedicated input modules instead.

NEUE is part of the magnetic track lighting category — see Track lighting for background on how these systems work.
