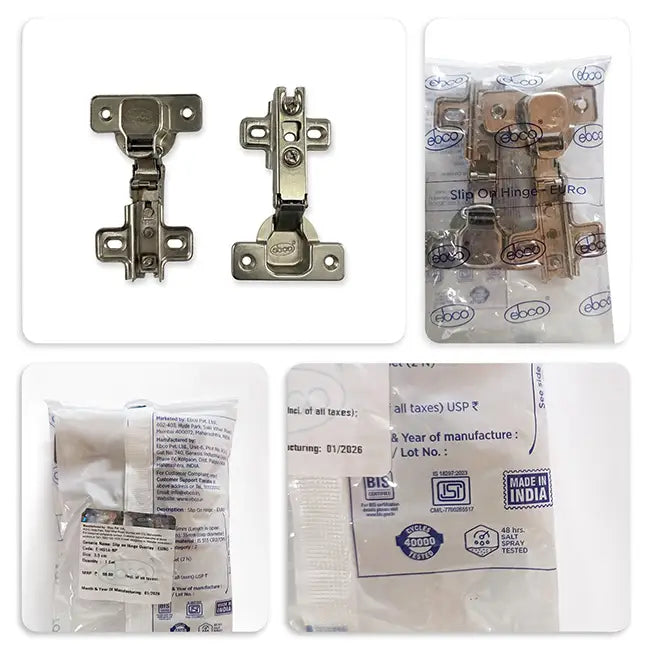

Ebco Slip On Hinge - EURO
Rs. 61
Tax included.
Shipping calculated at checkout.
Quantity
Out of stock

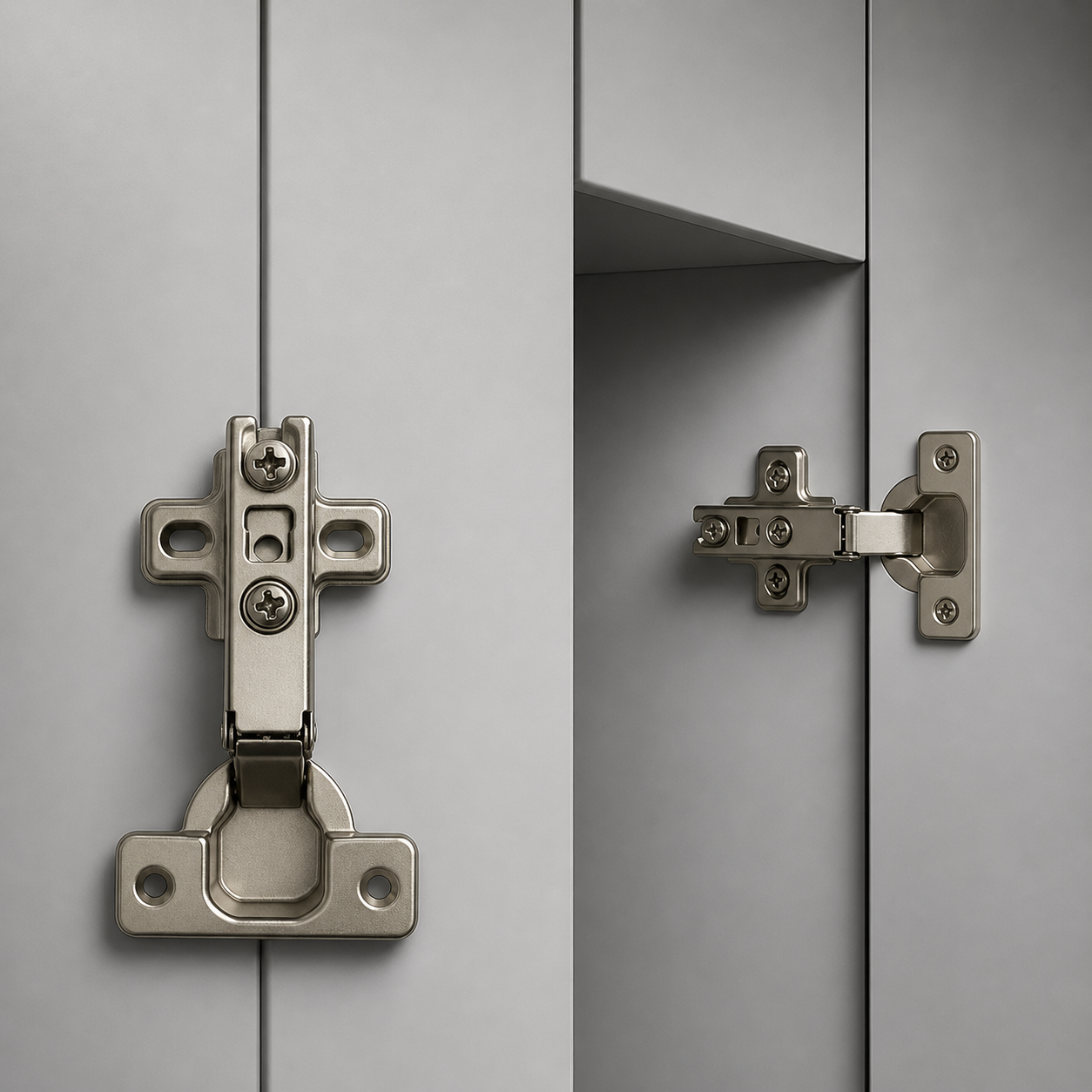

Ebco Slip On Hinge, Regular Close
delivers reliable cabinet door operation with standard European specifications at an economical price point. Designed for applications where regular close is sufficient, these concealed hinges provide smooth door movement and proper alignment without the added cost of soft-close mechanisms.
The 105° opening angle provides full cabinet access, while the nickel-plated steel finish ensures corrosion resistance suitable for Indian kitchen and bathroom conditions. With a standard 35mm cup size, these hinges are compatible with existing hinge holes, making upgrades and replacements straightforward.
Technical Specifications (Quick Reference)
| Specification | Details |
|---|---|
| Hinge Type | Concealed regular close hinge |
| Cup Diameter | 35 mm (European standard) |
| Door Thickness | 16 – 19 mm |
| Opening Angle | 105° |
| Material & Finish | Nickel-plated steel |
| Mechanism | Regular close (no soft-close) |
| Crank Options | 0, 8, and 16 crank available |
Crank Options Explained
- 0 Crank (Full Overlay): Door fully covers the cabinet side panel – most common in modular kitchens.
- 8 Crank (Half Overlay): Two doors share a common partition.
- 16 Crank (Inset): Door sits flush inside the cabinet opening.
Recommended Applications
- Budget kitchen cabinets
- Wardrobe and bedroom storage
- Bathroom vanities
- Rental property upgrades
- Utility and storage cupboards
- DIY home improvement projects
Installation Guidelines
- Drill a 35 mm cup hole at the appropriate depth.
- Fix hinge cup to the door panel.
- Mount base plate on cabinet side.
- Slip hinge onto mounting plate.
- Adjust door alignment as needed.
Ebco Slip On Hinge - EURO
Full
Rs. 61
