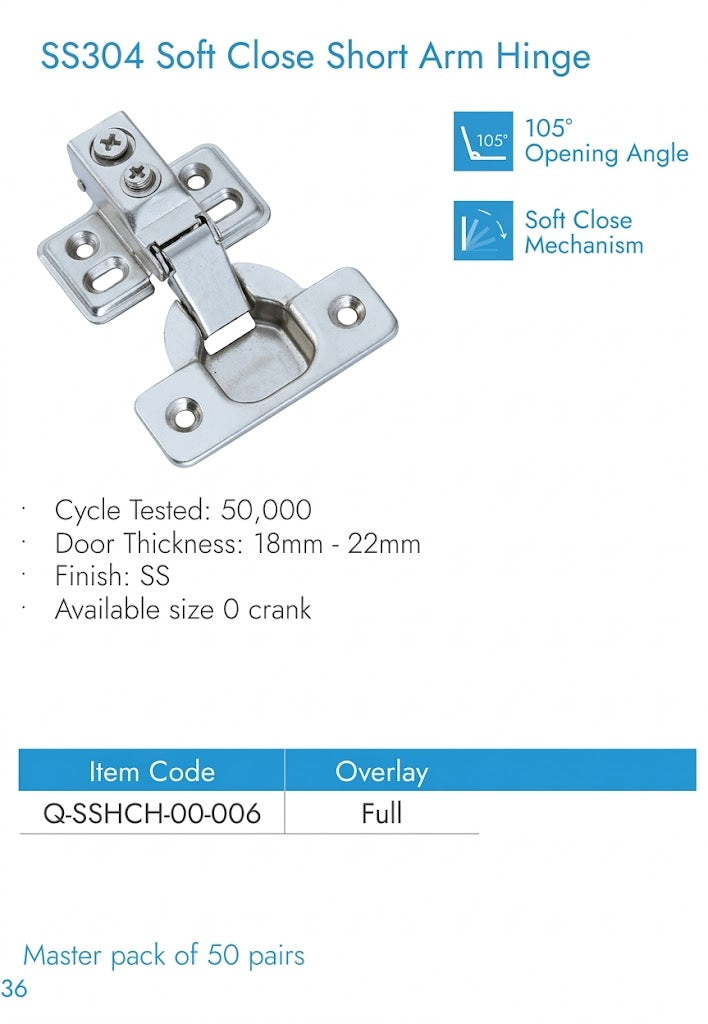

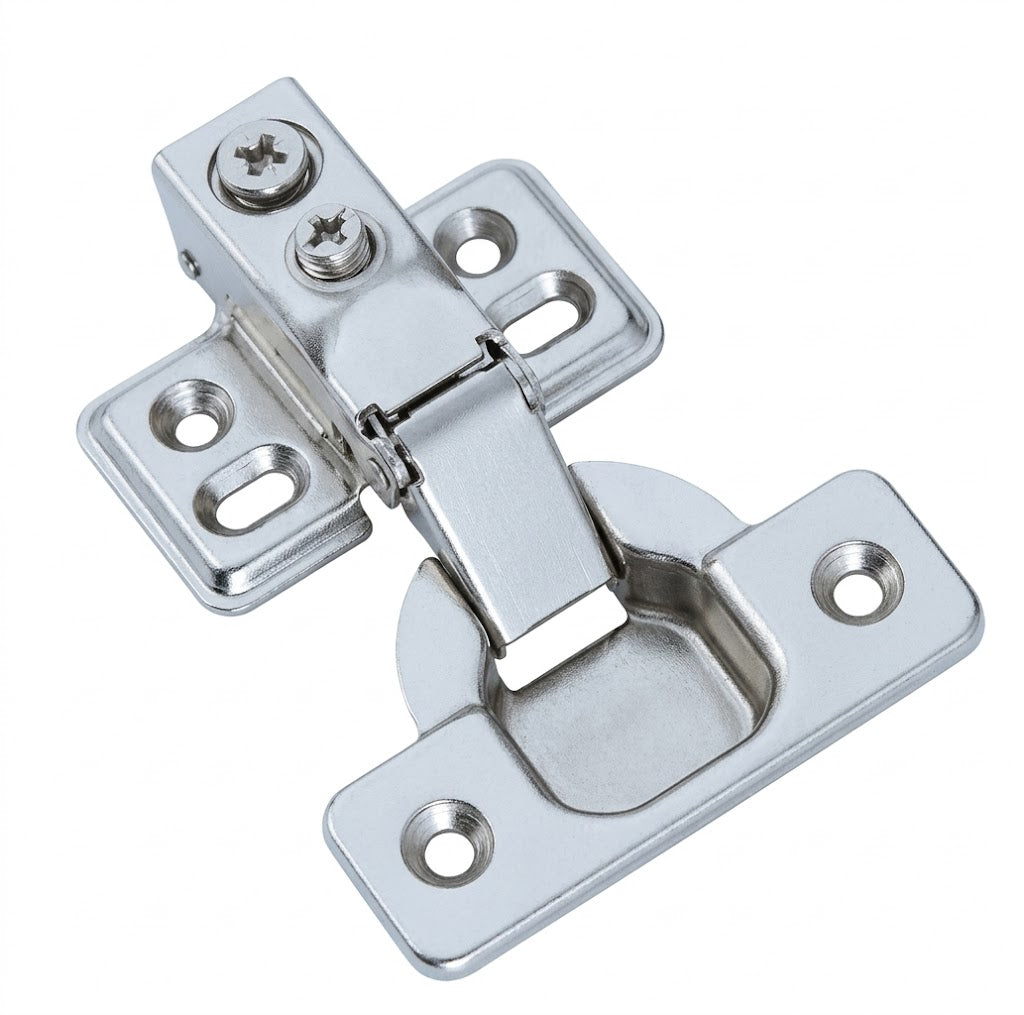

Performance & Core Features

• Mechanism: Features an integrated Soft Close Mechanism to ensure quiet and controlled door closing.

• Opening Angle: Provides a standard 105° opening angle.

• Durability: The hinge is cycle tested to 50,000 operations for long-term reliability.

Physical & Material Properties

• Material: Constructed from SS304 (Stainless Steel Grade 304).

• Finish: Finished in SS (Stainless Steel).

• Arm Design: Features a short arm configuration.

• Crank: Available in size 0 crank.

• Overlay: Designed for a Full Overlay application.

Installation & Packaging

• Door Thickness: Compatible with cabinet doors ranging from 18mm to 22mm in thickness.

• Item Code: Identified by the code Q-SSHCH-00-006.

• Packaging: Available in a master pack of 50 pairs.
