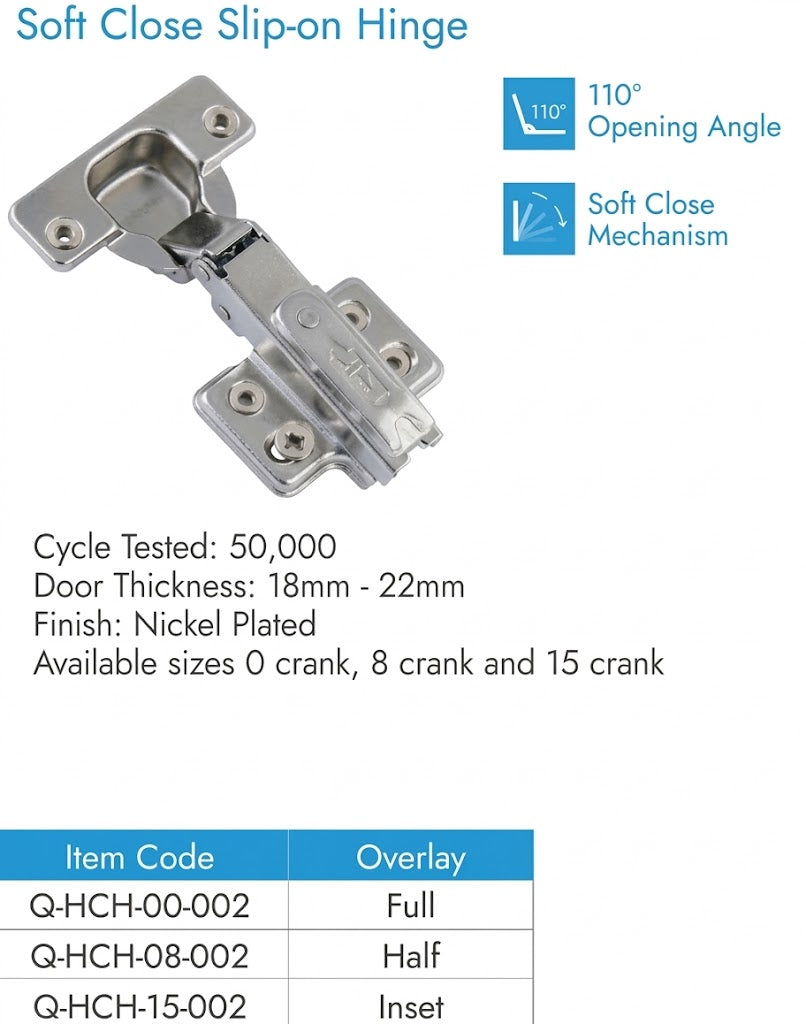

1. Performance & Mechanism

• Opening Angle: This hinge features a 110° opening angle.

• Mechanism: It includes an integrated Soft Close Mechanism to prevent slamming.

• Durability: The unit has been cycle tested to 50,000 operations.

2. Physical Properties

• Finish: The hardware has a Nickel Plated finish.

• Crank Options: It is available in 0 crank, 8 crank, and 15 crank sizes.

3. Installation & Compatibility

• Door Thickness: Designed for cabinet doors with a thickness of 18mm - 22mm.

• Overlay Configurations:

  • Full Overlay: Item Code Q-HCH-00-002.

  • Half Overlay: Item Code Q-HCH-08-002.

  • Inset: Item Code Q-HCH-15-002.
