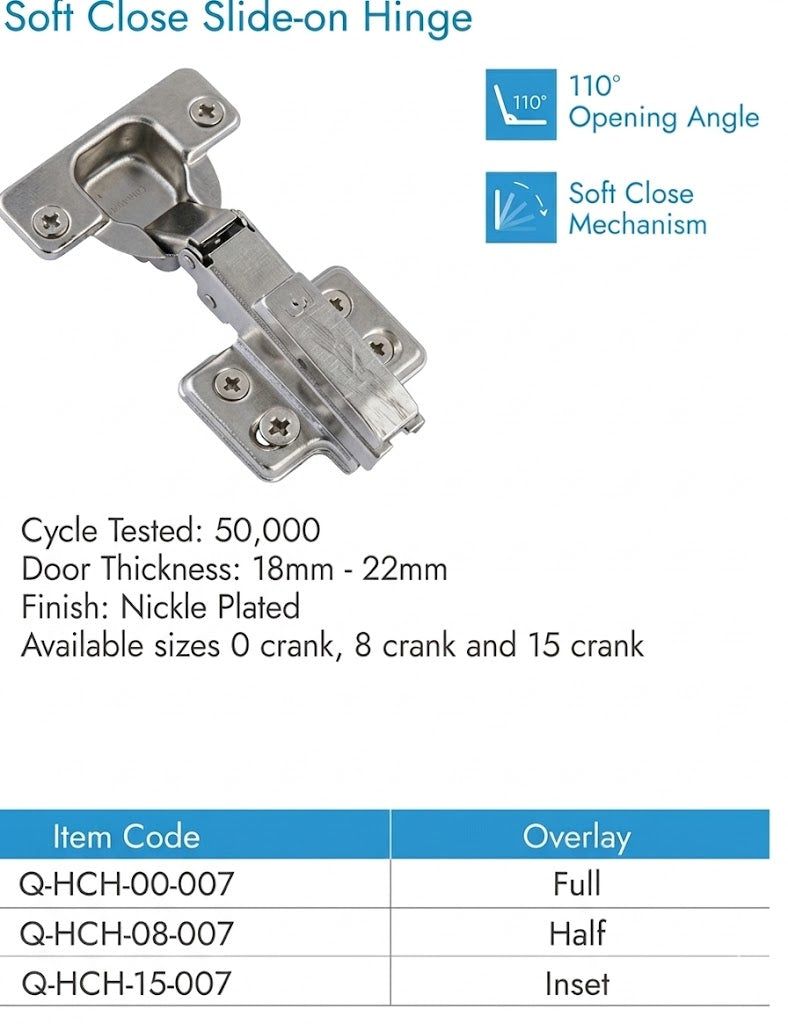

Performance & Core Features

• Mechanism: Features an integrated Soft Close Mechanism to ensure quiet and controlled door closing.

• Opening Angle: Provides a standard 110° opening angle.

• Durability: The hinge is cycle tested to 50,000 operations.

Physical & Material Properties

• Finish: The hardware has a Nickle Plated finish.

• Crank Options: It is available in 0 crank, 8 crank, and 15 crank sizes.

Installation & Compatibility

• Door Thickness: Compatible with cabinet doors ranging from 18mm to 22mm in thickness.

• Overlay Configurations:

  • Full Overlay: Item Code Q-HCH-00-007.

  • Half Overlay: Item Code Q-HCH-08-007.

  • Inset: Item Code Q-HCH-15-007.
