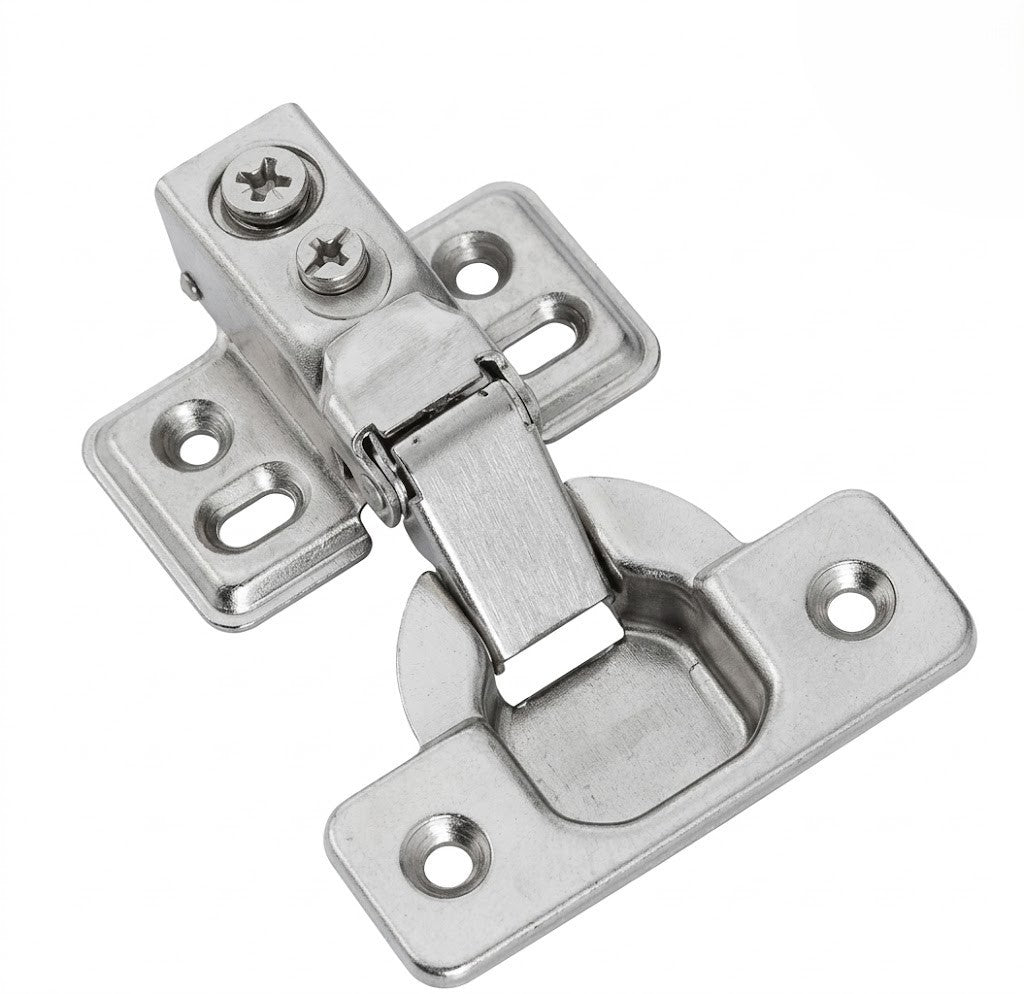

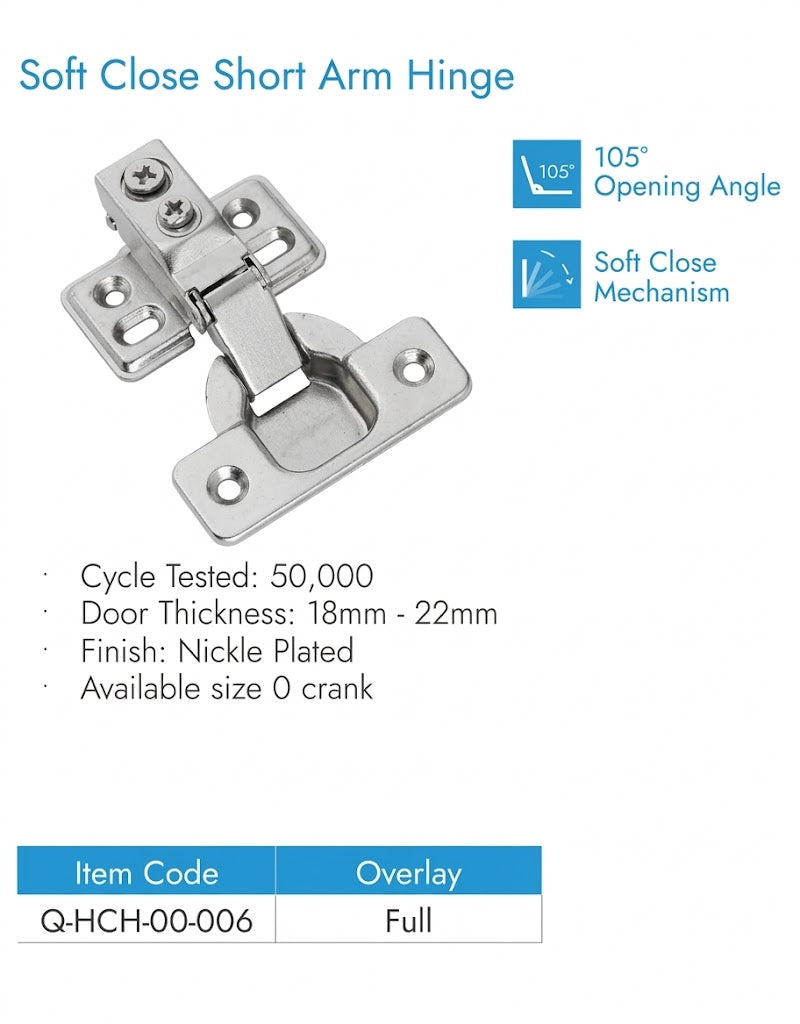

1. Performance & Mechanism

• Opening Angle: This hinge provides a standard 105° opening angle.

• Soft Close: Features an integrated soft close mechanism to ensure quiet and controlled door closing.

• Durability: The hardware has been cycle tested to 50,000 operations.

2. Physical Properties

• Material Finish: The hinge has a Nickle Plated finish for surface protection and a clean aesthetic.

• Crank Size: It is available in a size 0 crank configuration.

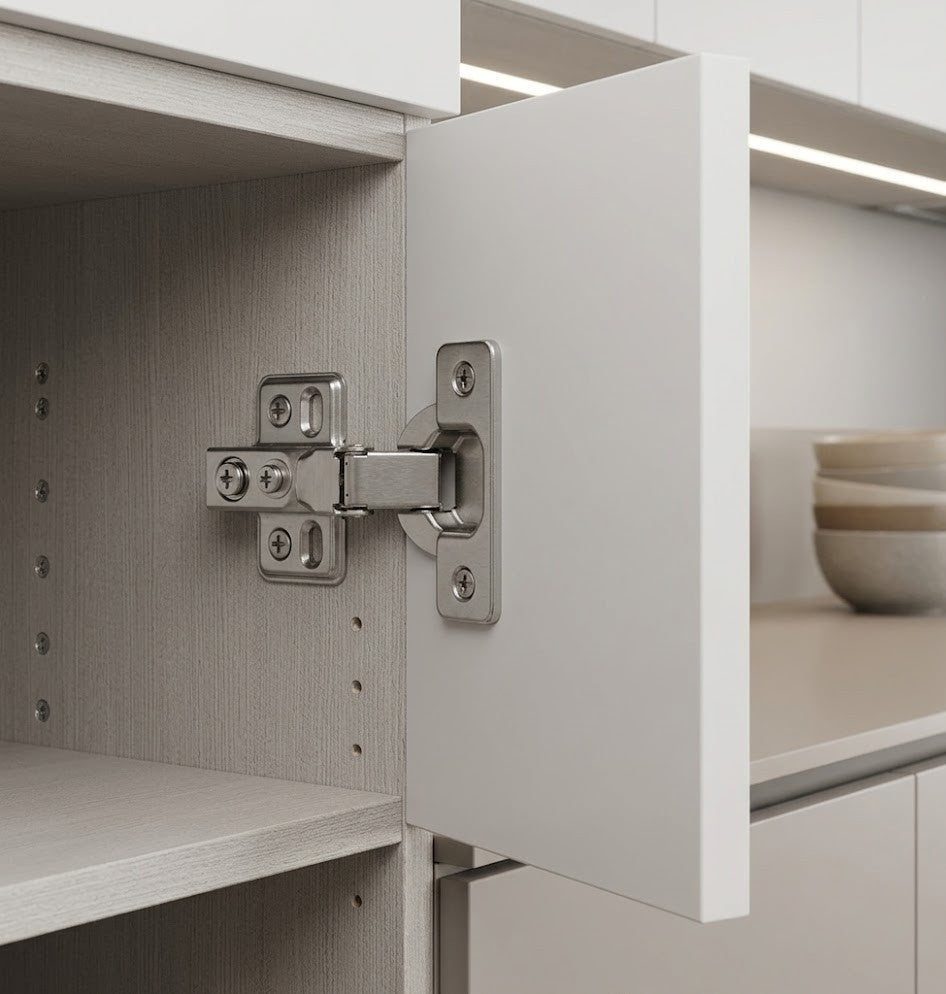

• Overlay: This specific model is designed for a Full overlay application.

3. Installation Requirements

• Door Thickness: Suitable for cabinet door thicknesses ranging from 18mm to 22mm.

• Arm Design: Utilizes a Short Arm design, which is typical for specialized cabinetry or slim-profile installations.

4. Identification

• Item Code: The product identifier for this hinge is Q-HCH-00-006.
