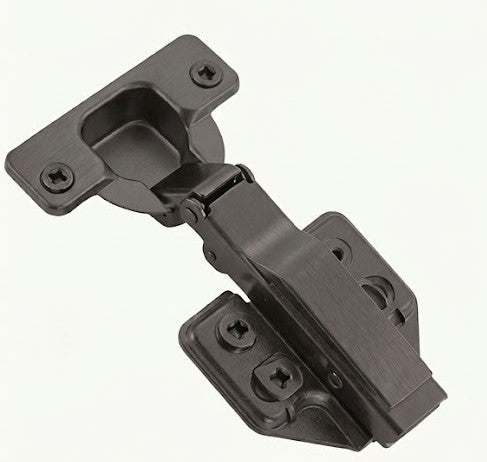

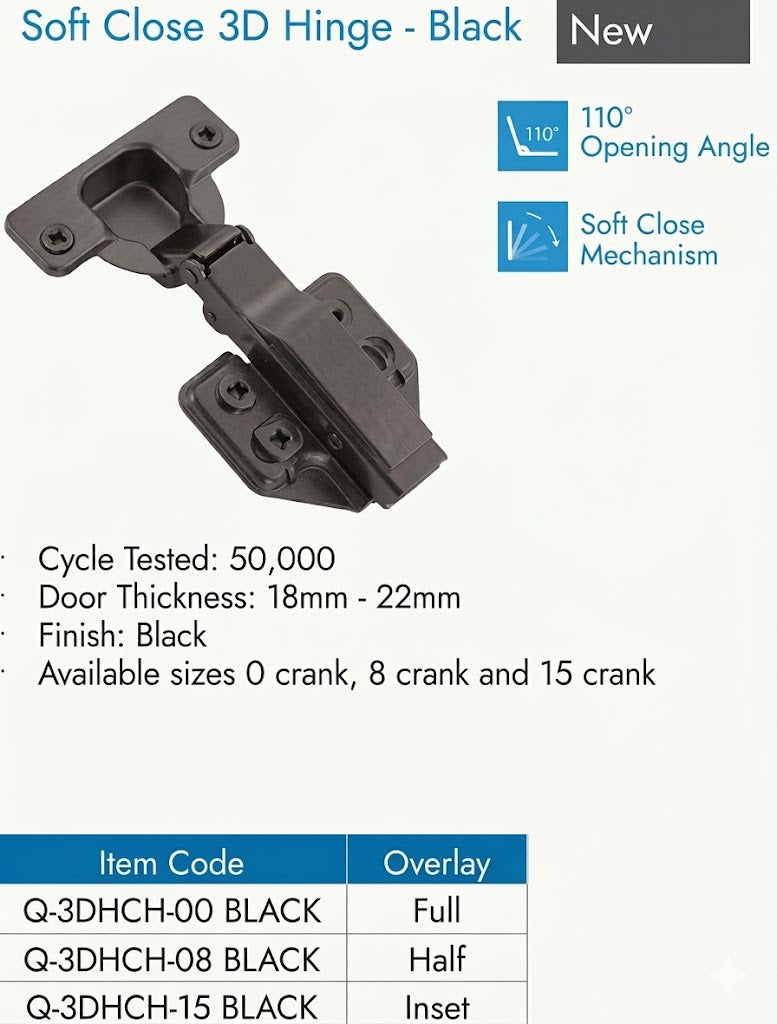

1. Performance & Mechanism

• Opening Angle: This hinge features a 110° opening angle.

• Mechanism: It includes an integrated Soft Close Mechanism for silent operation.

• Durability: The hardware is cycle tested to 50,000 operations.

2. Physical Properties

• Finish: The hinge has a Black finish.

• Crank Options: It is available in 0 crank, 8 crank, and 15 crank sizes.

• Adjustment: Features a 3D adjustment design for precise door alignment.

3. Installation & Compatibility

• Door Thickness: Suitable for cabinet doors with a thickness of 18mm - 22mm.

• Overlay Configurations:

  • Full Overlay: Item Code Q-3DHCH-00 BLACK.

  • Half Overlay: Item Code Q-3DHCH-08 BLACK.

  • Inset: Item Code Q-3DHCH-15 BLACK.
