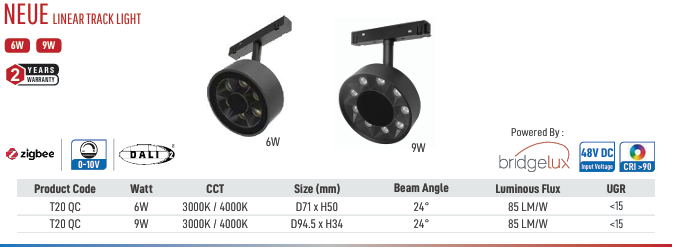

The T20 QC's disc form is the third distinct fixture shape in the NEUE accent range, alongside the flat bar and the cylinder — a wide, low circle available at 6W (D71xH50mm) or 9W (D94.5xH34mm), both producing a 24° focused beam. CRI greater than 90. On/Off. Black. 48V DC.

The two sizes are not simply wattage steps of the same shape — they have different proportions. The 9W version is wider and flatter (D94.5xH34mm), sitting almost flush against the track. The 6W version is narrower and taller (D71xH50mm), a more compact footprint that trades width for height. On a track run mixing fixture forms — bars, cylinders, discs — the QC's silhouette reads as visually distinct from either, which is the reason to specify it: not purely for output, but for the fixture's own physical character on the ceiling.

Where the choice between 6W and 9W matters practically is spacing and proportion, not just brightness — the flatter 9W disc suits installations where a low ceiling profile is the priority, while the taller 6W version fits where a slightly more sculptural fixture form is wanted.

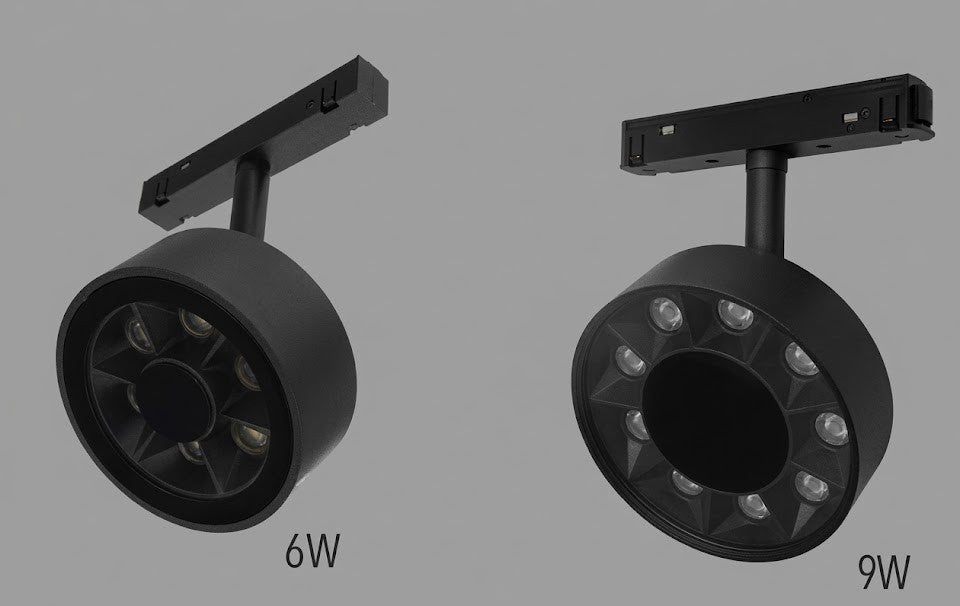

• 6W (D71xH50mm): Narrower, taller — more sculptural presence on the track
• 9W (D94.5xH34mm): Wider, flatter — lower ceiling profile

Track compatibility: NEUE Surface/Pendant and Deep Recessed Trimless. Dispatched from Bengaluru within 24 hours. All India delivery. WhatsApp +91 94484 64040.

What distinguishes the T20 QC from the bar and cylinder fixtures in the NEUE range?

The QC is disc-shaped rather than a bar or cylinder — a flat, wide circle that reads differently on the track than either alternative. It produces the same 24° accent beam as other NEUE spot fixtures, but the circular form is specified specifically for the visual variety it introduces on an installation that mixes fixture shapes deliberately.

Ordering accuracy matters here specifically because the two wattages differ meaningfully in physical proportion, not just output — a project photo or reference showing the wider, flatter 9W disc shouldn't be assumed interchangeable with the narrower, taller 6W when matching an existing installation or design reference.

If I'm trying to match an existing QC installation, how do I tell which wattage is already installed?

Check the physical proportions rather than assuming: the 9W is the wider, flatter disc (D94.5xH34mm); the 6W is the narrower, taller version (D71xH50mm). If uncertain from visual inspection, WhatsApp +91 94484 64040 with a photo for confirmation before ordering additional units.

Colour Rendering Index (CRI) and Unified Glare Rating (UGR) are internationally standardised lighting metrics — see Color Rendering Index for the technical definition.
