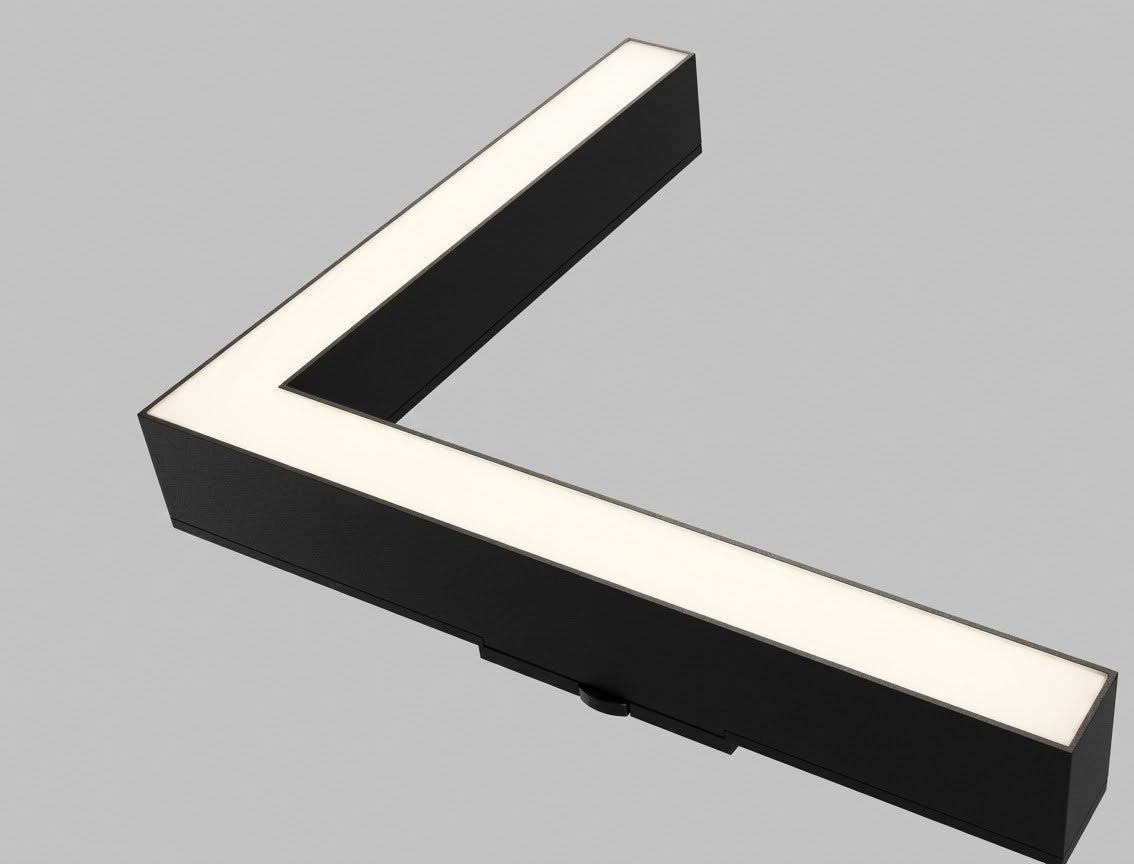

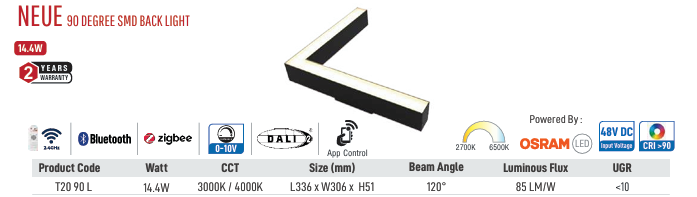

The 90° SMD Back Light exists to fix a specific gap that shows up in every perimeter track installation: two straight Back Light runs meeting at a 90° corner leave a dark triangle at the junction, because a straight fixture cannot follow the bend. The T20 90L is L-shaped instead — L336mm on one arm, W306mm on the other, 14.4W total, spanning both perpendicular track sections from a single connection point. 120° beam. CRI greater than 90. On/Off and RF+BT. Black. 48V DC.

A room lit with straight Back Lights along all four walls typically has four such corners, and without the L-shaped fixture, each one either gets left dim or requires two overlapping standard fixtures crammed into a space that was not designed for two connection points. The 90L installs directly at the jointer instead — one fixture, one connection, one piece of ambient light that continues cleanly around the bend rather than stopping and restarting.

It mounts specifically at a Surface Jointer 90° (T20 90°) or Recessed Jointer 90° (T20R 90°), drawing power through the track connection at that junction point rather than needing a separate input module. In a full four-wall perimeter installation, the specification is straightforward: one T20 90L at each of the four corners, standard T2030/T2060/T2090 Back Lights filling the straight runs between them.

• Use at: Every 90° corner junction in a perimeter track run
• Pairs with: T2030/T2060/T2090 straight Back Lights on the connecting runs

Track compatibility: NEUE Surface Jointer 90° or Recessed Jointer 90° specifically — not a general-purpose fixture for straight runs. Dispatched from Bengaluru within 24 hours. All India delivery. WhatsApp +91 94484 64040.

Do I need a 90° Back Light at every corner in a perimeter installation?

Yes, if the ambient light is meant to be continuous around the room. Without it, each 90° corner where two track sections meet leaves a dark gap, since standard straight Back Lights cannot bend to follow the corner. A four-wall perimeter installation needs one T20 90L per corner — typically four in a standard rectangular room.

Sourcing this correctly for a project means counting actual 90° junctions in the finalised ceiling plan rather than assuming a standard count — an L-shaped room has two such corners, a rectangular room with a full perimeter run has four, and irregular layouts can have more or fewer depending on the specific track path drawn.

How do I calculate exactly how many of these I need for my project?

Count the actual 90° track junctions in the finalised ceiling layout, not a generic assumption. A simple L-shaped run has two; a full four-wall rectangular perimeter has four; irregular layouts vary. Confirming this against the final drawing before ordering avoids a mid-installation shortage.

Colour Rendering Index (CRI) and Unified Glare Rating (UGR) are internationally standardised lighting metrics — see Color Rendering Index for the technical definition.
