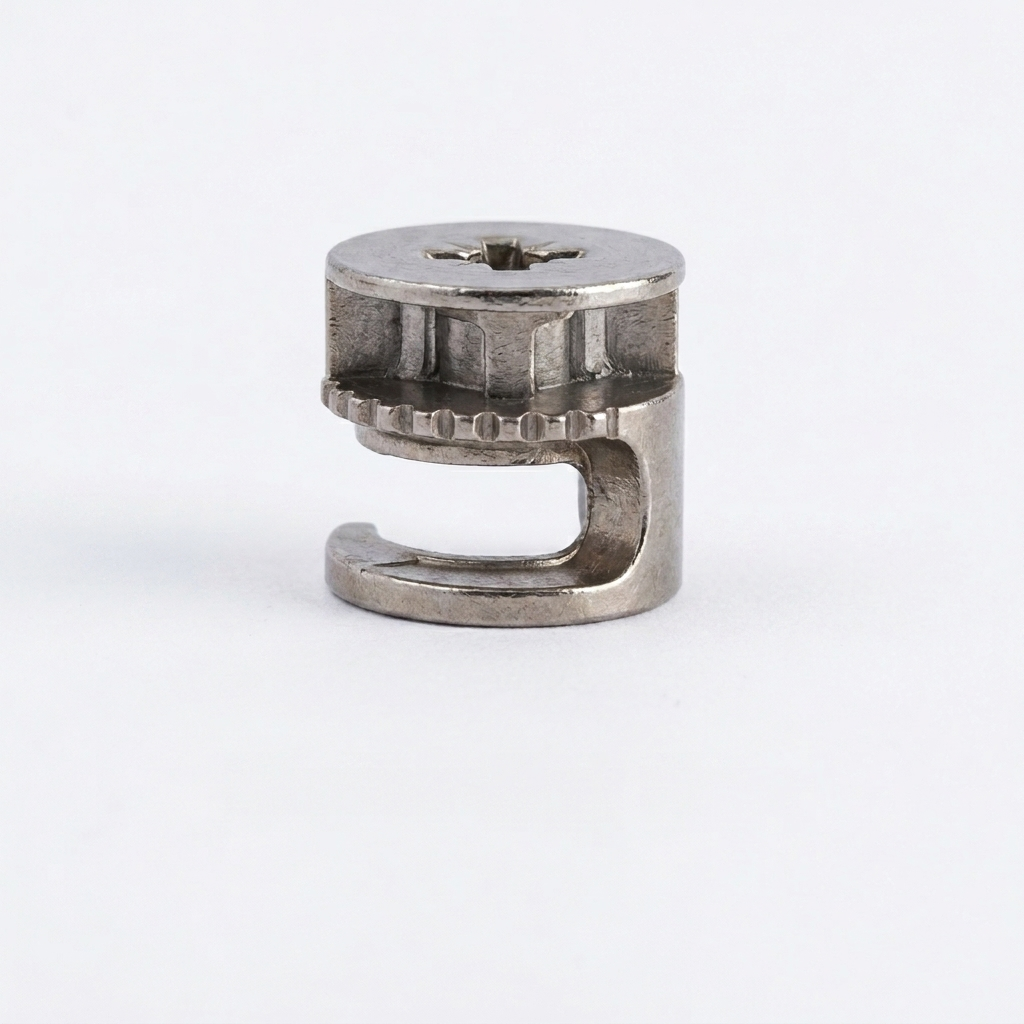

The Q-SM-0090-1 Connecting Cam is a high-strength joinery solution engineered for precision assembly in professional cabinetry and furniture manufacturing. Designed to create a rigid, hidden connection between panels, this fitting is essential for durable "knock-down" construction that requires both structural integrity and a minimalist finish.

Key Performance Features

• High-Torque Locking: The cam is designed with an internal spiral geometry that pulls the connecting dowel pin tightly into place, creating a vibration-resistant joint.

• Precision Casting: Manufactured from high-grade zinc alloy, the fitting offers excellent dimensional stability and resistance to deformation under load.

• Industrial Protection: Finished with a corrosion-resistant coating, ensuring reliable performance and a clean aesthetic throughout the life of the furniture.

• Streamlined Assembly: Optimized for rapid installation in pre-drilled holes, significantly reducing assembly time for both professional installers and end users.

Technical Specifications

Application & Versatility

The Q-SM-0090-1 is specifically calibrated for use with 18mm board thicknesses, the industry standard for high-quality carcass construction in wardrobes, kitchen cabinets, and office furniture. For a complete structural joint, it should be paired with a compatible steel or plastic-sleeved cam dowel, allowing for a seamless, handle-free look that emphasizes clean lines and architectural simplicity.
