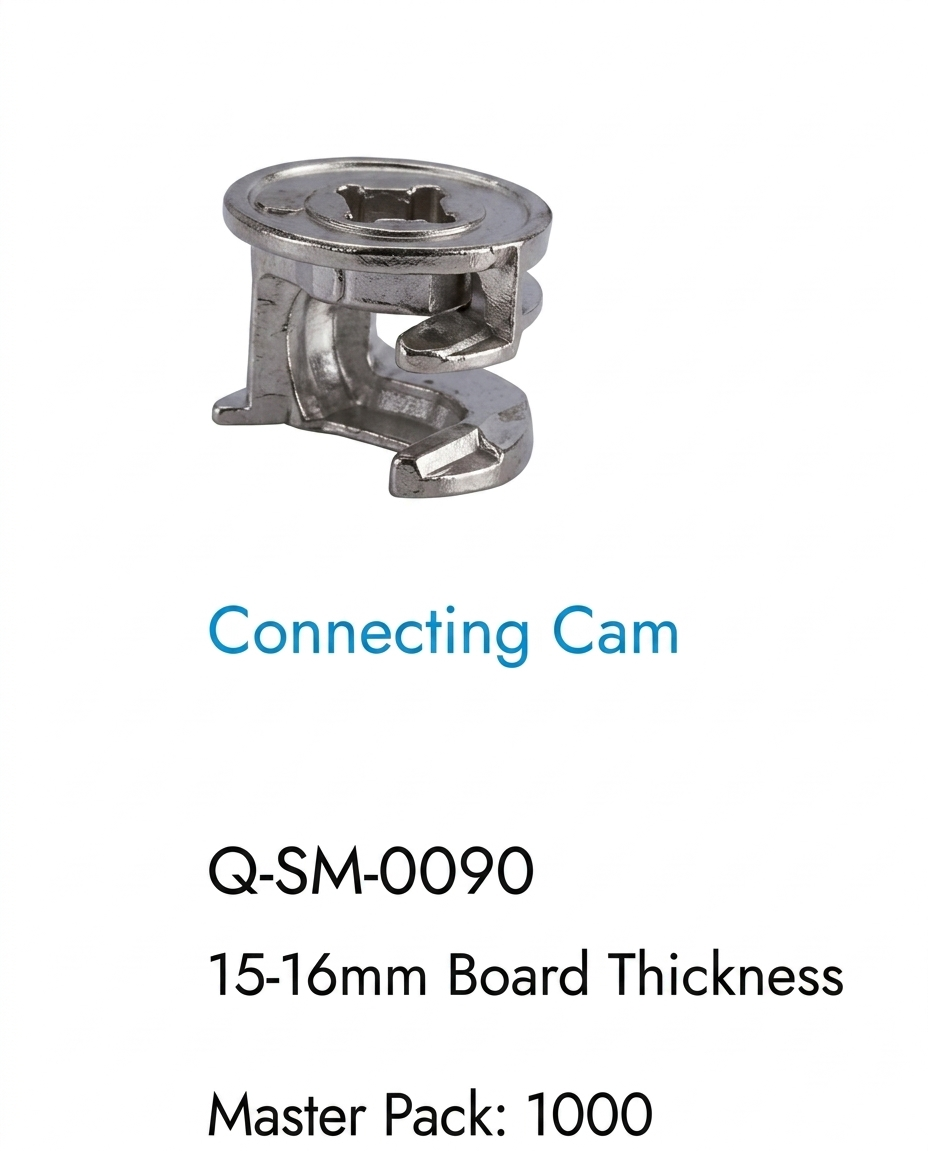

The Q-SM-0090 Connecting Cam is a high-performance joinery fitting designed for invisible and secure panel assembly in modern furniture and cabinetry. Precision-engineered from high-strength alloys, this cam is a critical component for creating durable "knock-down" joints that allow for easy furniture assembly and disassembly

Key Performance Features

• Solid Grip Technology: Designed with an internal geometry that provides a powerful, vibration-proof grip on the mating dowel pin, ensuring structural stability.

• Hardened Threading: Features a reinforced internal drive that resists stripping, even when subjected to high torque during final tightening.

• Corrosion Resistance: Finished with high-quality nickel plating to ensure longevity and a clean, professional appearance in high-humidity environments like kitchens.

• Invisible Fastening: Provides a sleek, hidden connection point, maintaining the minimalist aesthetic of contemporary furniture designs

Technical Specifications

Application & Compatibility

The Q-SM-0090 is optimized specifically for 15mm to 16mm board thicknesses, commonly used in flat-pack kitchen units, wardrobes, and shelving. It functions as the "female" part of a two-piece connector system; for a complete installation, it must be paired with a compatible 34mm or standard-sized cabinet cam dowel pin to pull panels together securely.
