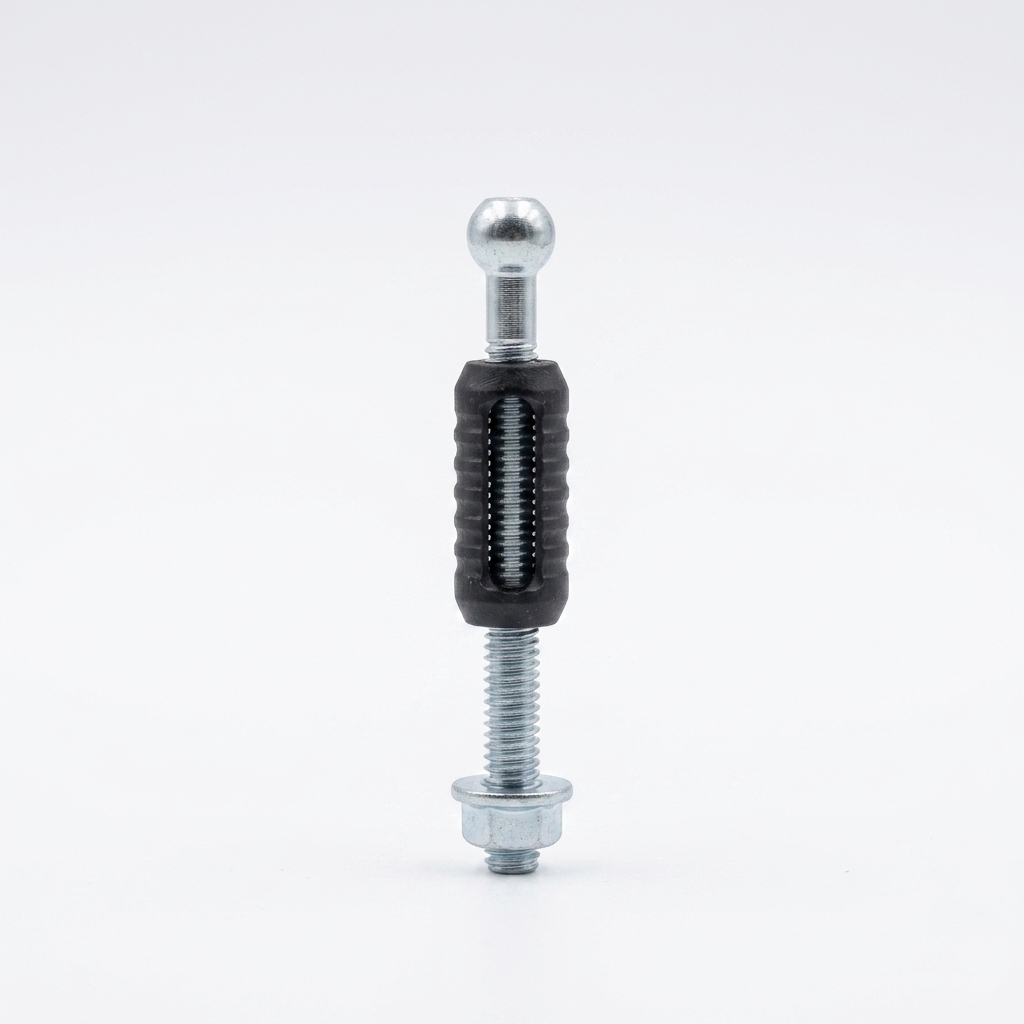

The Q-SM-0124 Connecting Bolt is an advanced fastening solution engineered for efficient, high-strength "knock-down" joinery in contemporary cabinetry and furniture manufacturing. Designed for speed and reliability, this component is a core element of a professional-grade cam-and-dowel assembly system, ensuring structural stability and precise alignment.

Key Performance Features

• Rapid Installation Technology: Features a Rapid 10mm design, optimized for high-speed insertion and immediate engagement during large-scale production.

• Dual-Material Construction: Integrates a high-tensile steel core with a durable protective sleeve to provide a secure, friction-locked fit that prevents the joint from loosening under mechanical stress.

• Precision Coupling Geometry: The head is specifically designed for seamless interaction with connecting cams, creating a powerful internal grip for invisible, handle-free cabinet construction.

• Industrial-Grade Durability: Finished with a corrosion-resistant coating to ensure long-term integrity and a clean professional aesthetic in both residential and commercial environments.

Technical Specifications

Application & Versatility

The Q-SM-0124 is ideally suited for modern furniture designs where clean lines and architectural simplicity are paramount. It provides a versatile solution for assembling wardrobes, modular shelving, and office furniture. For a complete structural connection, this bolt should be paired with a compatible connecting cam and furniture nut to maintain a high-performance, hidden joint.
