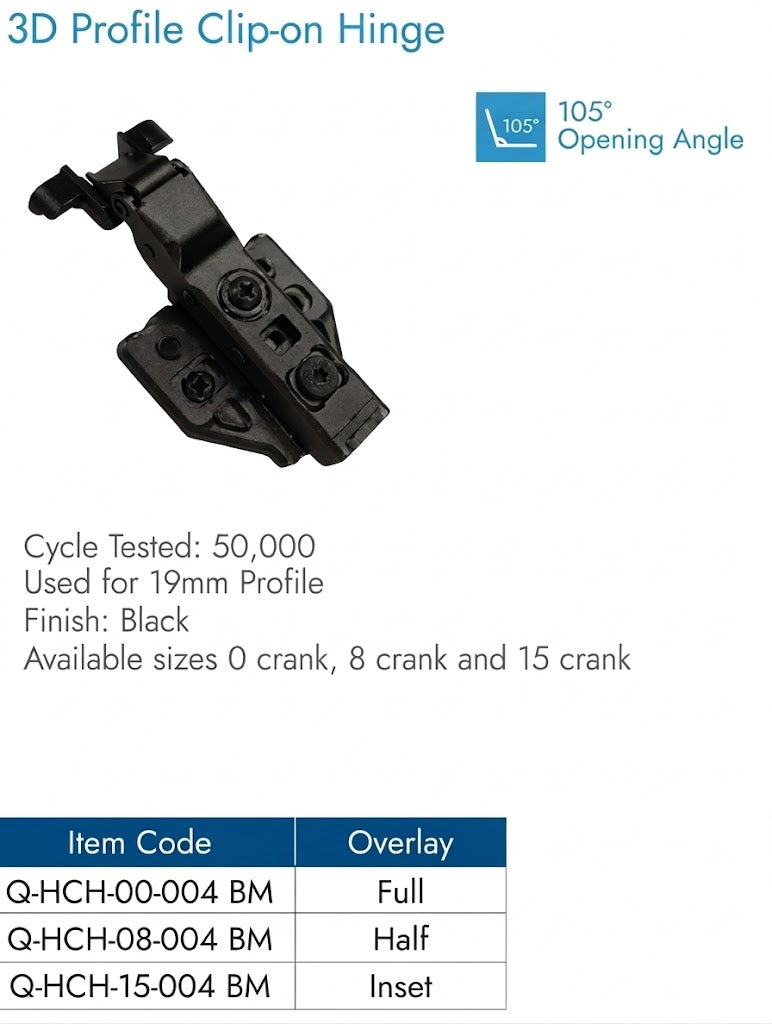

1. Performance & Geometry

• Opening Angle: This hinge features a 105° opening angle.

• Cycle Tested: The unit has been tested for 50,000 cycles.

• Available Sizes: It comes in 0 crank, 8 crank, and 15 crank.

2. Physical Properties

• Finish: The hinge has a Black finish.

• Application: It is designed to be used for a 19mm Profile.

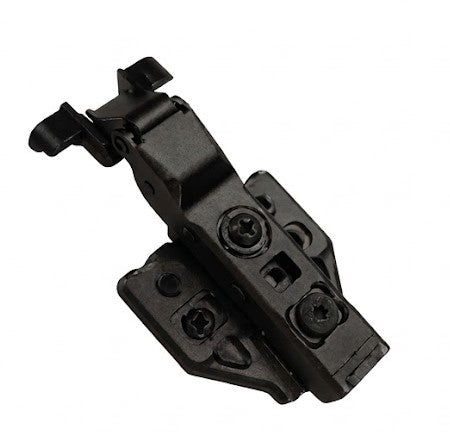

• Mounting Type: Features a 3D Clip-on design for precise adjustment and easy installation.

3. Identification & Overlay Options

The following item codes correspond to specific overlay requirements:

• Full Overlay: Item Code Q-HCH-00-004 BM.

• Half Overlay: Item Code Q-HCH-08-004 BM.

• Inset: Item Code Q-HCH-15-004 BM.
